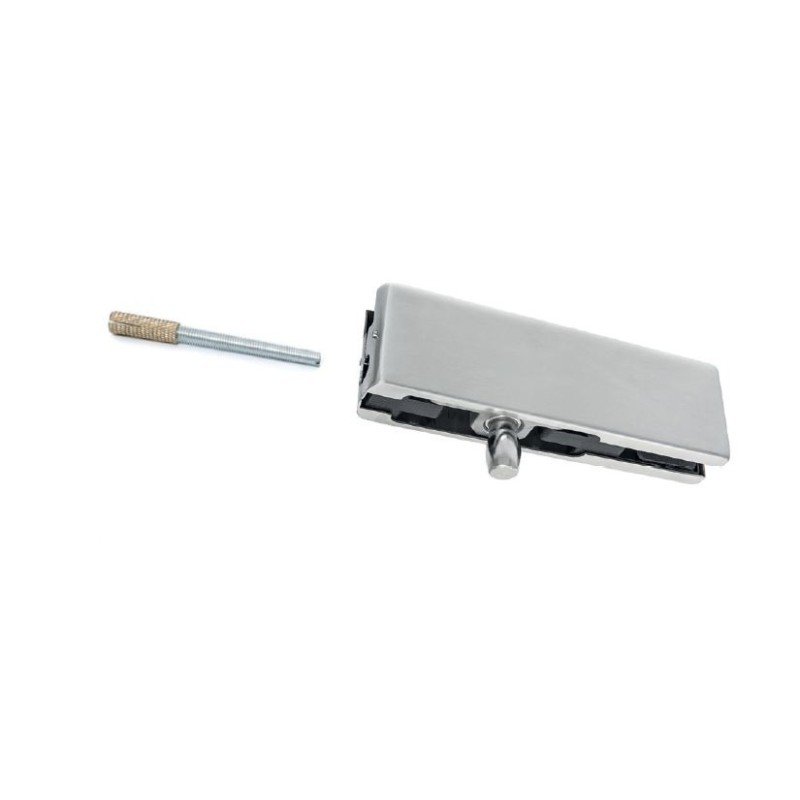

    PD30 PSS - Overpanel patch for PD20 hinge, wall installation by means of M8 threaded rod and expansion bolt
    PD30 PSS - Overpanel patch for PD20 hinge, wall installation by means of M8 threaded rod and expansion bolt
    PD30 PSS - Overpanel patch for PD20 hinge, wall installation by means of M8 threaded rod and expansion bolt
  • Gloss

PD30 PSS - Overpanel patch for PD20 hinge, wall installation by means of M8 threaded rod and expansion bolt

zł93.19

The PD30 fanlight connector is an indispensable mounting element designed for the attachment of glass walls. Specifically designed to work with the PD20 hinge, it ensures stability and durability of the structure. Equipped with a pin and a dowel, it guarantees easy and secure installation.

Quantity

  Security policy

Order security

  Delivery policy

Safely delivery

  Return policy

14 days to return the goods

Guarantee safe & secure checkout

Made from high quality materials, it is resistant to damage and provides an aesthetically pleasing finish. Ideal for modern interiors where both functionality and elegant design are important.

Specifications:

  • Material: Made of stainless steel or aluminium.
  • Finish: Available in gloss (PSS), satin (SSS), silver (NA) and black (NABL).
  • Glass thickness: Compatible with 8mm,10mm, 12mm glass thickness.
  • Recommended screw tightening force: M6 - 15 Nm, M8 - 20 Nm.
  • Kit contains: anchor M8.

Application:

Ideal for mounting glass walls and doors in shops, offices or homes.

Advantages:

  • High quality materials: Made of stainless steel or aluminium.
  • Versatility: Suitable for different types of glass.
  • Aesthetic appearance: Available in gloss, satin, silver anode or black anode to match the style of the interior.
CDA
PD30PSS

Data sheet

Glass thickness
8 mm
10 mm
12 mm
Surface finish
Gloss
Material
Stainless steel
Recommended screw tightening force
M6 - 15 Nm
M8 - 20 Nm
