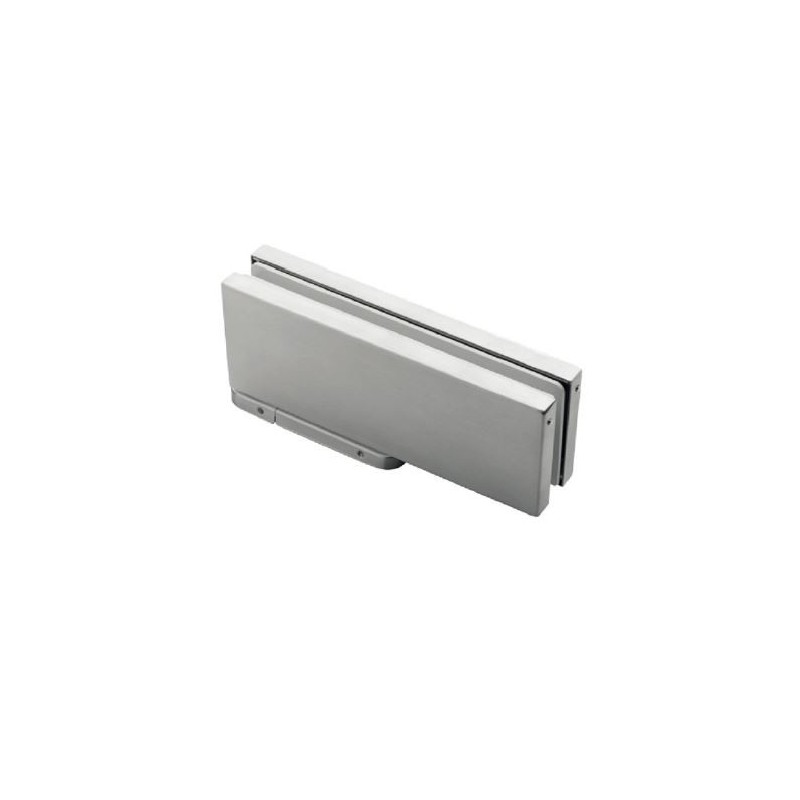

    FS880NHO-3 SSS - Hydraulic bottom hinge - FORCE 3 (without hold open)
    FS880NHO-3 SSS - Hydraulic bottom hinge - FORCE 3 (without hold open)
    FS880NHO-3 SSS - Hydraulic bottom hinge - FORCE 3 (without hold open)
  • Satin

FS880NHO-3 SSS - Hydraulic bottom hinge - FORCE 3 (without hold open)

zł1,078.27

The FS880NHO-3 bottom hinge offers a variety of closing force options. With its low weight and aesthetically pleasing design, it significantly improves the quality of use.

Quantity

  Security policy

Order security

  Delivery policy

Safely delivery

  Return policy

14 days to return the goods

Guarantee safe & secure checkout

It is ideal for those looking for elegant and modern solutions for their home or office. It gives interiors a unique character and a contemporary look, decorating a variety of surfaces. It ensures high quality workmanship and reliability for years of use.

Specifications:

  • Finish: silver.
  • Version: without hold open.
  • Closing force: 25 Nm.
  • Door width: 750 - 1000 (mm).
  • Maximum door weight: 100 (kg).
  • Closing range: 150° - 10°.
  • Latching range: 10° - 0°.
  • Closing and latching speeds are controlled by two independent valves to ensure complete hydraulic control.

Application:

Their main application is to automatically close the door when it is opened, providing convenience to users and increasing safety and comfort in rooms such as:

  • Offices and workplaces: They provide automatic closing of doors, which helps to maintain privacy and control the flow of people.
  • Hospitality: Used to provide privacy for guests and regulate access to different parts of the facility.
  • Commercial facilities: Shops, restaurants, shopping centres - protect against unauthorised access and maintain air conditioning.
  • Public venues: Public places such as hospitals, airports where it is important to maintain order and security.
  • Other venues: Meeting rooms, sports halls, where access control and security are key.
CDA
FS880NHO3SSS
2 Items

Data sheet

Glass thickness
8 mm
10 mm
12 mm
Surface finish
Satin
Maximum glass width
1000 mm
Max door weight
100 kg
