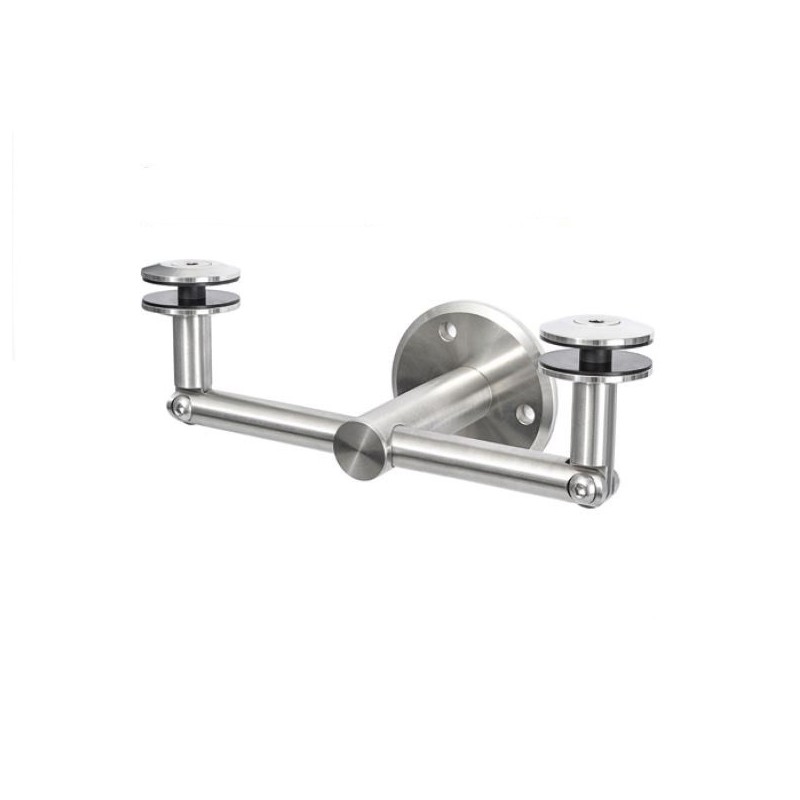

    MD25-OS SSS - Bottom double fixing
    MD25-OS SSS - Bottom double fixing
    MD25-OS SSS - Bottom double fixing
  • Satin

MD25-OS SSS - Bottom double fixing

zł447.49

The MD25-OS double side bottom mount is a high-quality solution dedicated to the fixing of toughened glass.

Quantity

  Security policy

Order security

  Delivery policy

Safely delivery

  Return policy

14 days to return the goods

Guarantee safe & secure checkout

The product is made from the highest quality stainless steel for exceptional durability, corrosion resistance and longevity, even in harsh operating conditions.

Specifications:

  • Material: stainless steel 1.4301/1.4305.
  • Finish: Available in satin (SSS).
  • Glass thickness: Compatible with glass thicknesses of 10 - 21.52 mm.
  • Maximum load: 120 kg.
  • Recommended screw tightening force: M8x16: 12 Nm; M10x50: 10 Nm.

Application:

Ideal for architects, designers and contractors looking for durable and aesthetically pleasing solutions for:

  • Facades and glass facades.
  • External glazing.
  • Glass canopies.

Advantages:

  • Fixing made from corrosion-resistant stainless steel ensures reliability and aesthetics for years to come. The choice of stainless steel guarantees resistance to moisture, changing temperatures and other external factors.
  • The MD25-OS mount provides a solid and secure connection between the toughened glass and the structure, guaranteeing the stability of the entire installation.
  • Thanks to its well-thought-out design, installation of the mount is quick and easy, ensuring convenience of use both during installation and in operation.
CDA
MD25OSSSS

Data sheet

Glass thickness
10 mm
21,52 mm
Surface finish
Satin
Material
Stainless steel
Max glass weight
120 kg
