Thanks to its modular main rail, the system allows it to be adapted to different built-in configurations, ensuring convenience and reliability at every stage of use.
Specifications:
- System load capacity: up to 150 kg per panel
- Glass thickness: Compatible with glass thicknesses of 10 - 12 mm.
- Minimum panel width: 650 mm.
- Maximum panel width: 1100 mm.
Set includes:

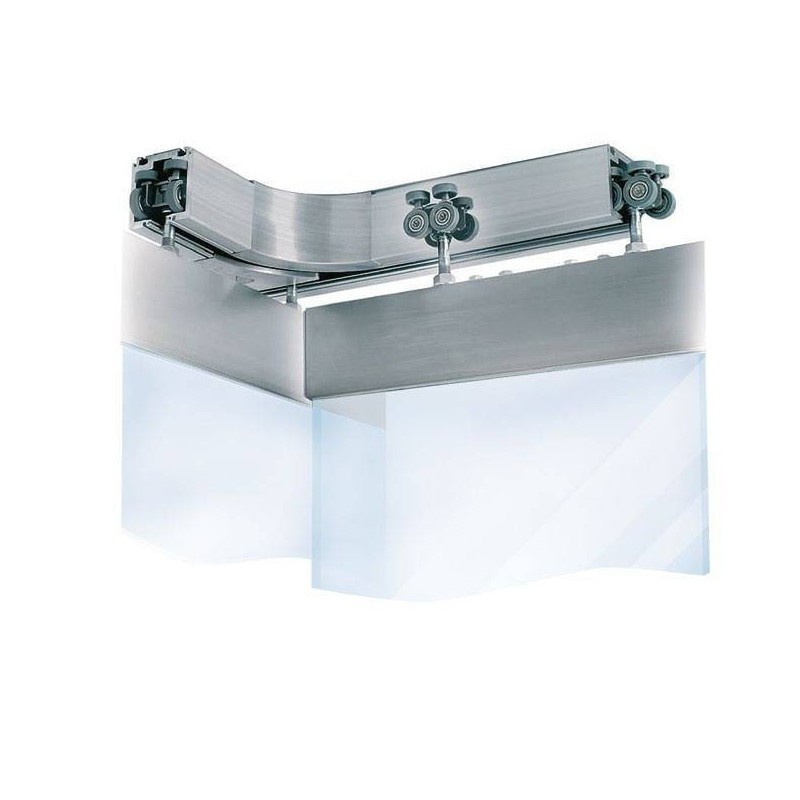

- main top track
- DRMN80 or DRMN100 profile, end cap
- top pivot with slider
- bottom arm for door leaf, floor pivot
- lock with euro-profile cylinder, half cylinder or cylinder with knob, dust proof keeper or dust proof keeper
- front bolt, end cap with slot
- carriage roller with slider
Application:

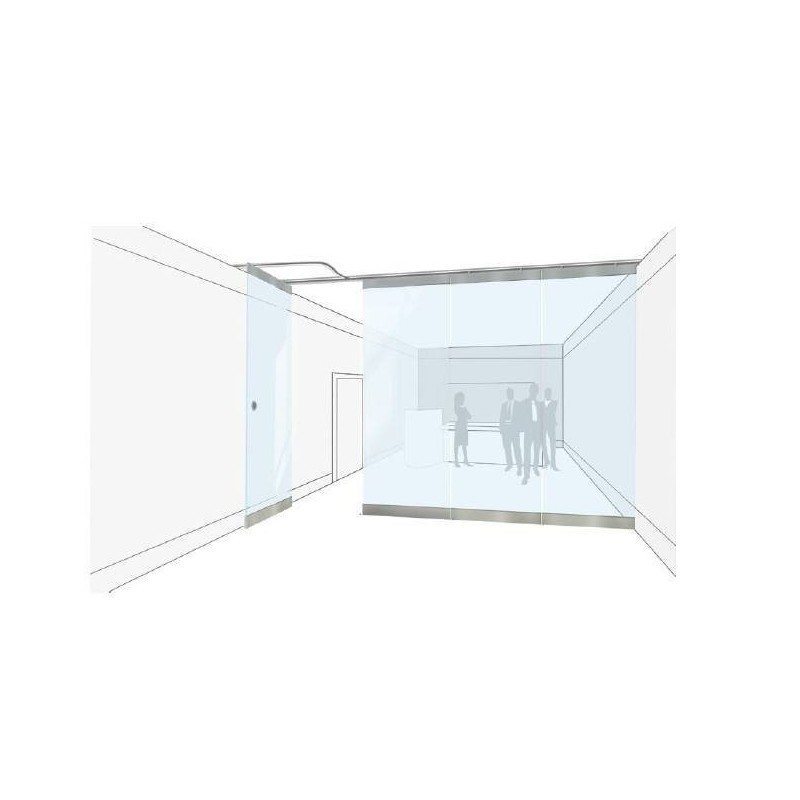

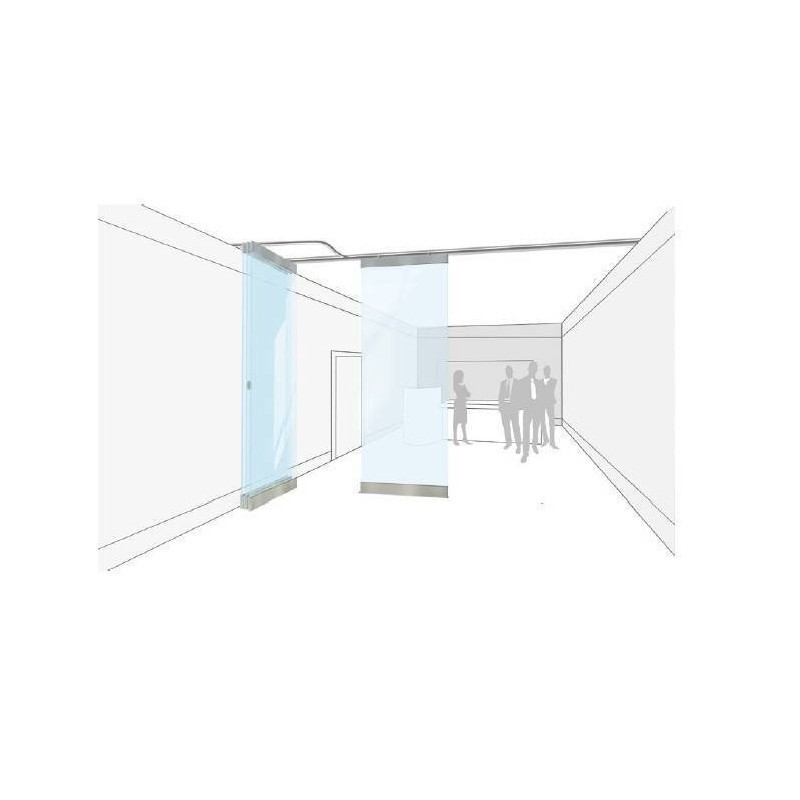

Ideal for creating modern, glazed partitions in offices, commercial premises or shopping malls. Thanks to its robust construction and smooth sliding mechanism, it is ideal for areas that require flexible space partitioning while maintaining aesthetics and functionality.
Advantages:
- Smooth and quiet operation - ball bearings in the rollers ensure light and effortless movement.
- Durability and reliability - trolley bodies made of stainless steel guarantee the longevity of the system.
- Stable movement - stabilising rollers and track selection mechanism provide full control over panel movement.
- Trouble-free operation - robust materials and precision workmanship minimise the need for maintenance.
