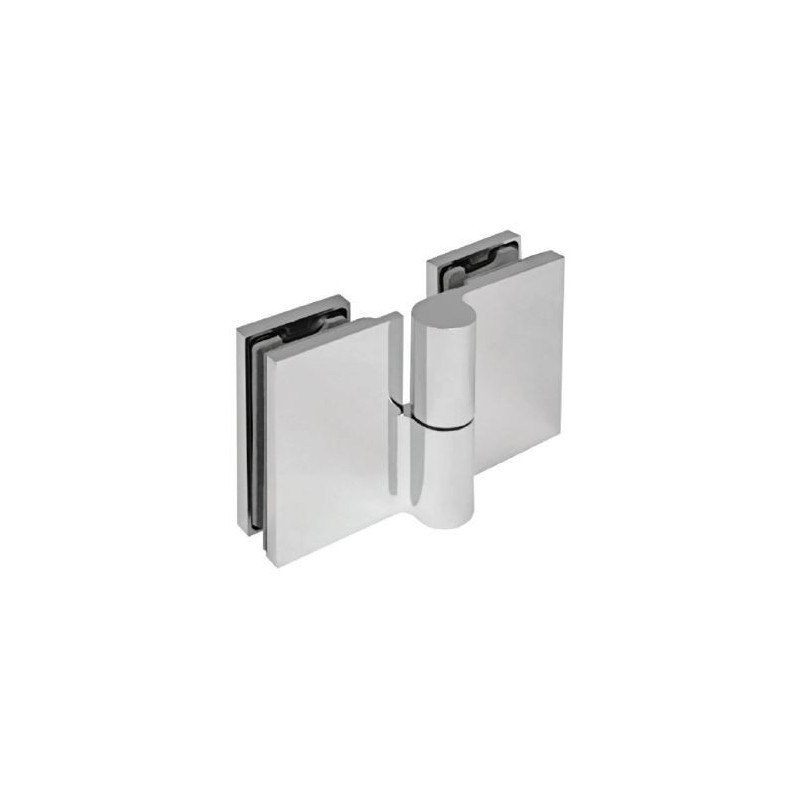

    TGHU180LH PC - Lifted hinge left glass to glass 180°
    TGHU180LH PC - Lifted hinge left glass to glass 180°
    TGHU180LH PC - Lifted hinge left glass to glass 180°
  • Gloss

TGHU180LH PC - Lifted hinge left glass to glass 180°

zł204.80

The TGHU180LH fitting is an important component in shower enclosures that allows the glass door to be lifted and held firmly.

Quantity

  Security policy

Order security

  Delivery policy

Safely delivery

  Return policy

14 days to return the goods

Guarantee safe & secure checkout

The clamp is designed to connect glass systems at 180 degrees. It is ideal for shower enclosures and other glass constructions. The hinge is raised on the left side. Remember, chrome-plated brass is a finish that adds elegance and durability.

The TGHU180LH hinge is a component designed for shower enclosures, allowing the installation of glass doors. Here is some key information about this product:

Specifications:

  • Material: Made of brass.
  • Finish: Available in gloss (PC), satin (SC), black (BL) or gold (PBC and G24K).

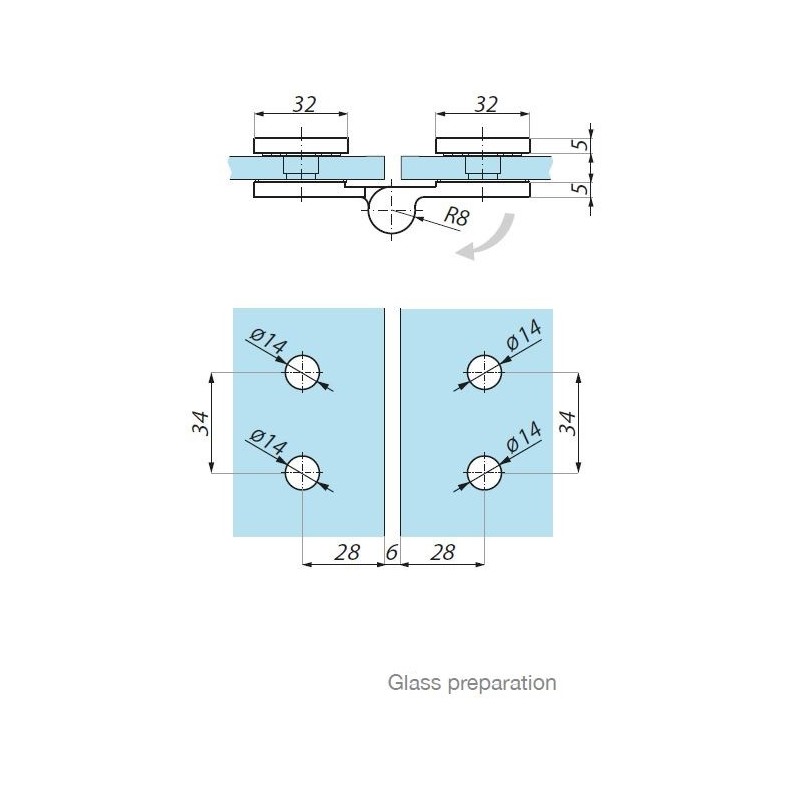

  • Glass thickness: Compatible with 6 mm or 8 mm thick glass.
  • Maximum door weight per pair: 40 kg (note: the stated weight is for a pair of hinges).
  • Recommended screw tightening force: 10 Nm.

Application:

The product is recommended for use in shower cabins.

Ideal for installing glass doors in bathrooms, bath rooms or spas.

Advantages:

  • High quality materials: Made of durable brass.
  • Versatility: Fits a variety of glass and shower enclosure designs.
  • Aesthetic appearance: Available in gloss, satin, black or gold to match the style of the interior.
CDA
TGHU180LHPC
8 Items

Data sheet

Glass thickness
6 mm
8 mm
Surface finish
Gloss
Material
Brass
Max glass weight (per pair)
40 kg
