    TGH33SET NA - Glass door hinge with hinge and cover
    TGH33SET NA - Glass door hinge with hinge and cover
    TGH33SET NA - Glass door hinge with hinge and cover
    TGH33SET NA - Glass door hinge with hinge and cover
  • Anode

TGH33SET NA - Glass door hinge with hinge and cover

zł151.55

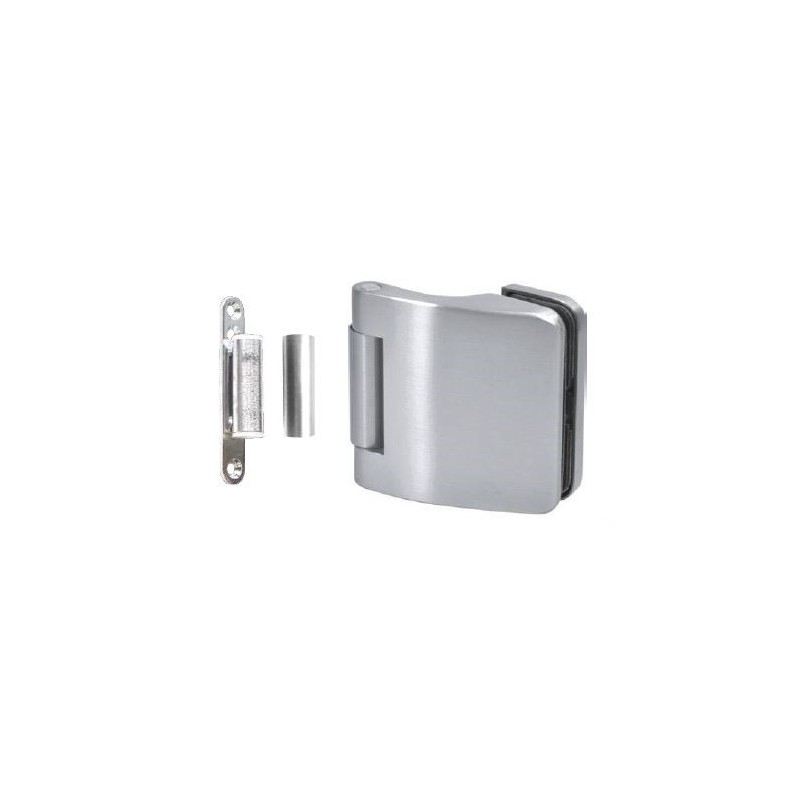

The TGH33SET arbor hinge is a high quality kit designed for the installation of glass doors that combines robustness, aesthetics and functionality. The set includes a frame pivot and pin sleeve, which ensures not only a stable and secure door fixing, but also a modern and neat look.

Quantity

  Security policy

Order security

  Delivery policy

Safely delivery

  Return policy

14 days to return the goods

Guarantee safe & secure checkout

Choose the TGH33SET hinge with frame pivot and pin sleeve to give your glass door a modern look and reliable functionality. Thanks to its high-quality workmanship and aesthetic design, this product will meet the expectations of even the most demanding users. Here is some key information about this product:

Specifications:

  • Material: Made of aluminium.
  • Finish: Available in alinox (AX) and silver anode (NA).
  • Glass thickness: Compatible with 8mm or 10mm thick glass.
  • Maximum door weight per pair: 50 kg (note: the stated weight is for a pair of hinges).
  • Maximum door width: 950 mm.
  • Kit includes: hinge, frame pivot, cover pin sleeve.

Application:

  • Flats and houses: Ideal for glass doors in bathrooms, shower rooms and as an elegant element of interior design.
  • Offices: Great for modern offices, providing aesthetic and functional solutions for office glazing.
  • Hotels and restaurants: The TGH33SET hinge adds class and elegance, while guaranteeing the reliability and convenience of glass doors.

Advantages:

  • High quality materials: Made of aluminium.
  • Versatility: Fits various types of glass doors and walls.
  • Aesthetically pleasing appearance: available in gloss, alinox or silver anode to match the interior style.
CDA
TGH33SETNA
2 Items

Data sheet

Glass thickness
8 mm
10 mm
Surface finish
Anode
Max glass weight (per pair)
50 kg
Maximum glass width
950 mm
