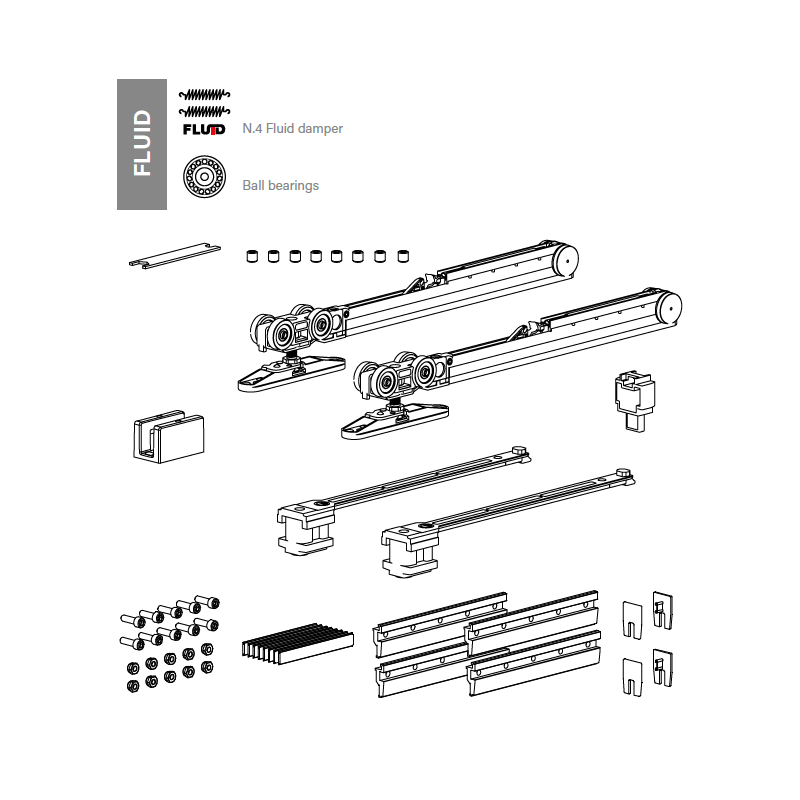

Set includes:
- clamps (2 pcs)
- gaskets (set)
- roller with integrated self-closing Fluid Damper (2 pcs)
- cover retainer (1 set)
- end caps for clamps (left and right) (set)

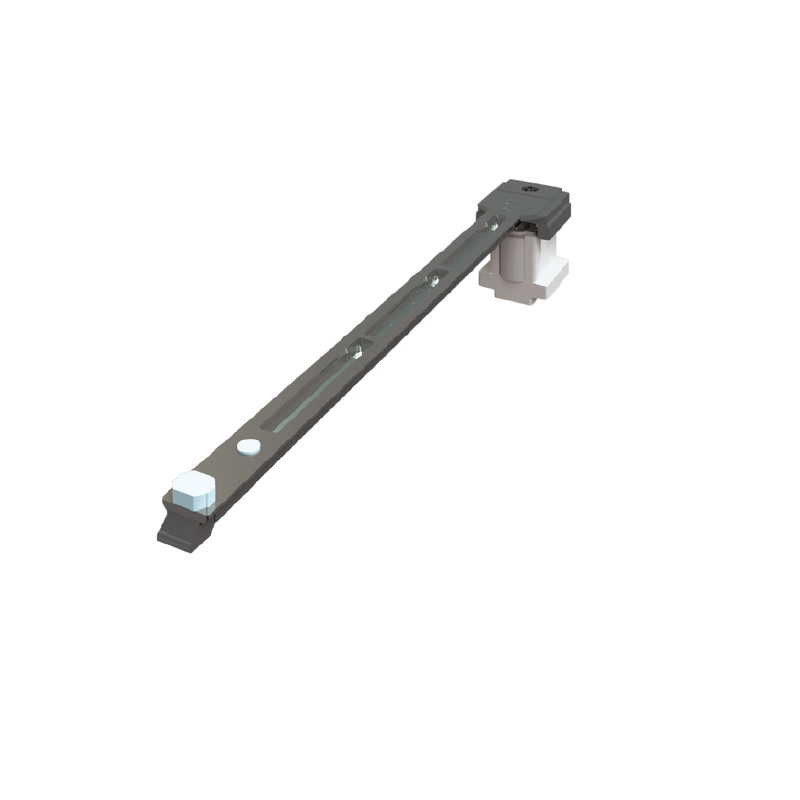

- floor guide TS-GUIDE-ADJ SC (1 pcs)
Specification:
- Finish: silver anodised.
- Set’s capacity: 120 kg.
- Glass thickness: 8.00 - 8.76. Others available: 10.00 - 10.76; 12.00 - 12.76 mm.
- Minimum door width: 740 mm.
New self-closing damper is closed by a “U” shaped anodized aluminium profile. This canned extruded profile also act as a reinforcement of the entire damper structure, avoiding any type of flexion.

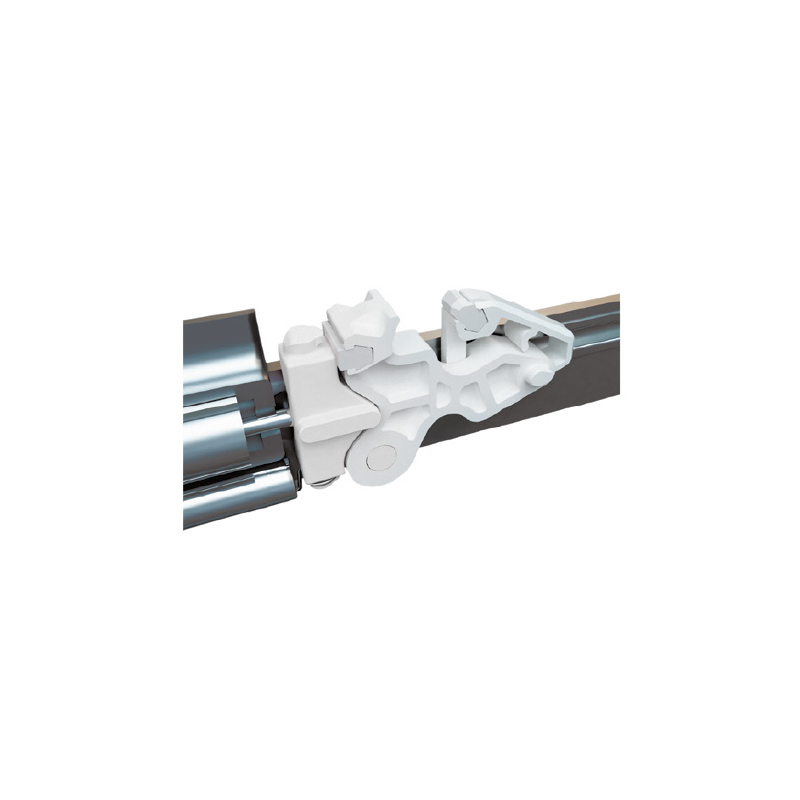

The new activator of Fluid Damper damper is made in aluminium alloy with high strength and resistance. It is equipped with a rounded edge and elastic elements which are meant to avoid any vibration during the contact with aluminium. The trailer hitch rotation has been improved with no functional noise.

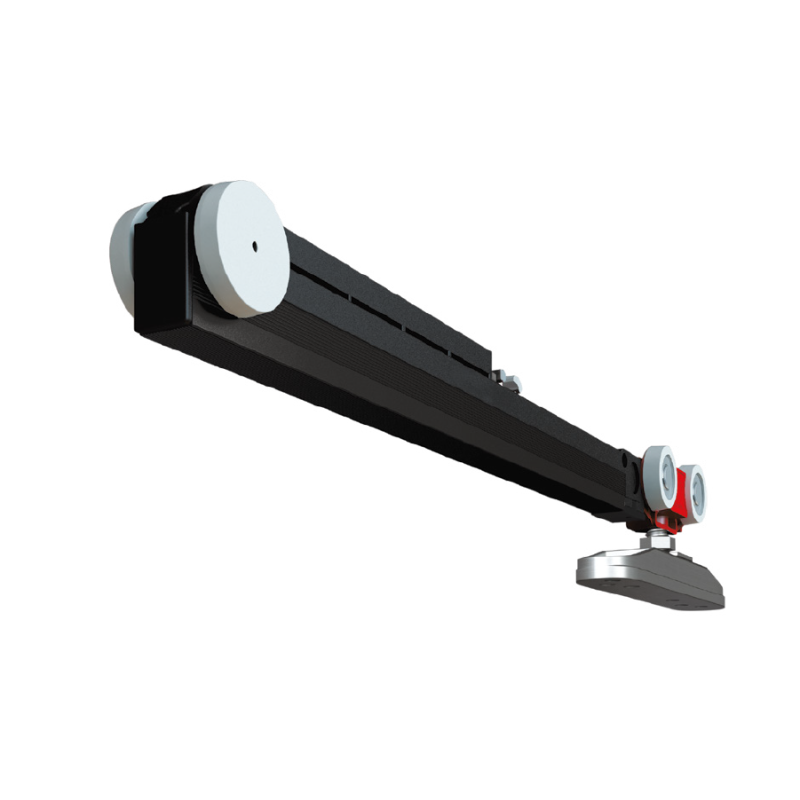

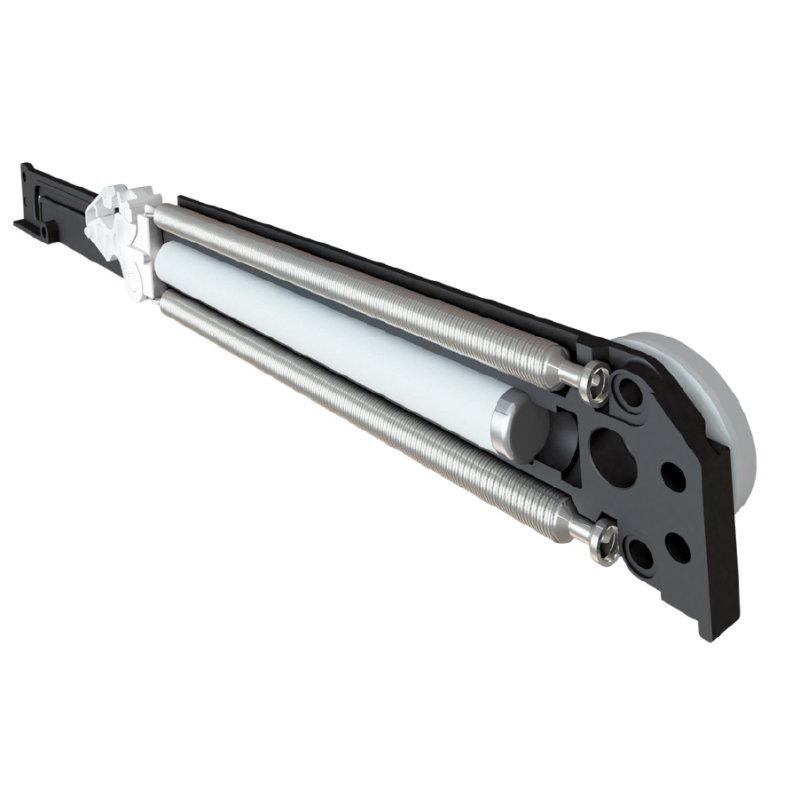

The self-closing damper of Fluid system introduces an important novelty, given that the damper case is directly connected to sliding trolley and it includes an hydraulic piston which brakes the door on its movement. Therefore closing motion is leaded by a structure, equipped with two springs located in the upper and in the bottom side of the slide. In this way, in both direction, the movement will result extremely soft, fluid and light, even with heavier weight (up to 120kg).
Sliding trolley wheels are equipped with coated bearings of large dimension and indipendent inertial dampers, laterally positioned. These inertial dampers, inserted between bearings and related rigid support, allow the wheels to slide uniformly leaning on the track, even in case of wall defects or not alligned installation of the track itself. These innovations allow to cut vibration off during the motion, reducing functional noise and granting the best sliding quality possible.
