    PD63 NABL - Overpanel & side panel patch
    PD63 NABL - Overpanel & side panel patch
    PD63 NABL - Overpanel & side panel patch
  • Black

PD63 NABL - Overpanel & side panel patch

zł124.93

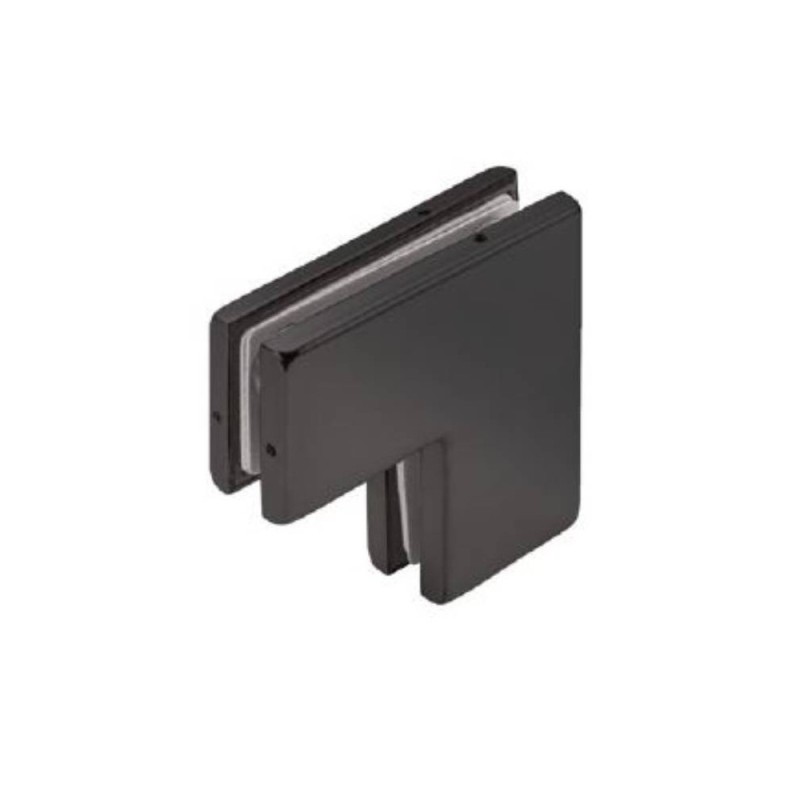

The PD63 is a high-quality transom and side panel connector, ideal for doors and glass structures. Its precision workmanship guarantees reliability and long-lasting use.

Quantity

  Security policy

Order security

  Delivery policy

Safely delivery

  Return policy

14 days to return the goods

Guarantee safe & secure checkout

The connector is distinguished by its elegant stainless steel or aluminium finish, which not only enhances the aesthetics but also adds a modern and unique character to the interior. With this element, an interesting decorative effect can be achieved, harmoniously integrating it into a variety of surfaces.

Specifications:

  • Material: Made of stainless steel or aluminium.
  • Finish: Available in gloss (PSS), satin (SSS), silver (NA) and black (NABL).
  • Glass thickness: Compatible with 8mm,10mm, 12mm glass thickness.
  • Recommended screw tightening force: M6 - 15 Nm, M8 - 20 Nm.

Application:

Ideal for mounting glass walls and doors in shops, offices or homes.

Advantages:

  • High quality materials: Made of stainless steel or aluminium.
  • Versatility: Suitable for different types of glass.
  • Aesthetic appearance: Available in gloss, satin, silver anode or black anode to match the style of the interior.
CDA
PD63NABL
5 Items

Data sheet

Glass thickness
8 mm
10 mm
12 mm
Surface finish
Black
Material
Aluminium
Recommended screw tightening force
M6 - 15 Nm
M8 - 20 Nm
