    PD10 NABL - Bottom hinge
    PD10 NABL - Bottom hinge
    PD10 NABL - Bottom hinge
  • Black

PD10 NABL - Bottom hinge

zł91.14

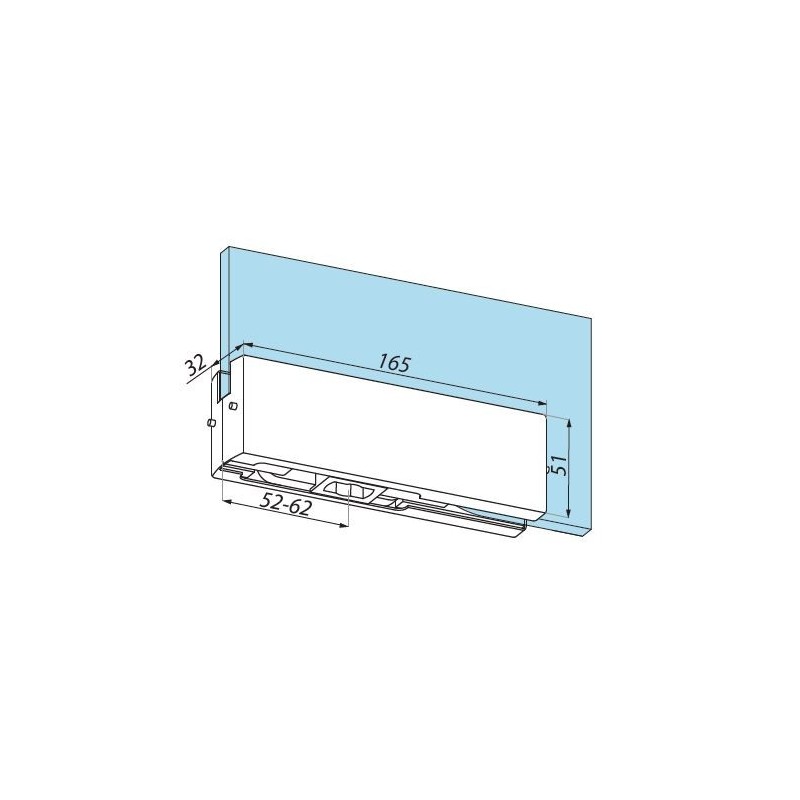

The PD10 glass fitting is a high-quality mounting element, mainly used in the construction of glass doors and partitions.

Quantity

  Security policy

Order security

  Delivery policy

Safely delivery

  Return policy

14 days to return the goods

Guarantee safe & secure checkout

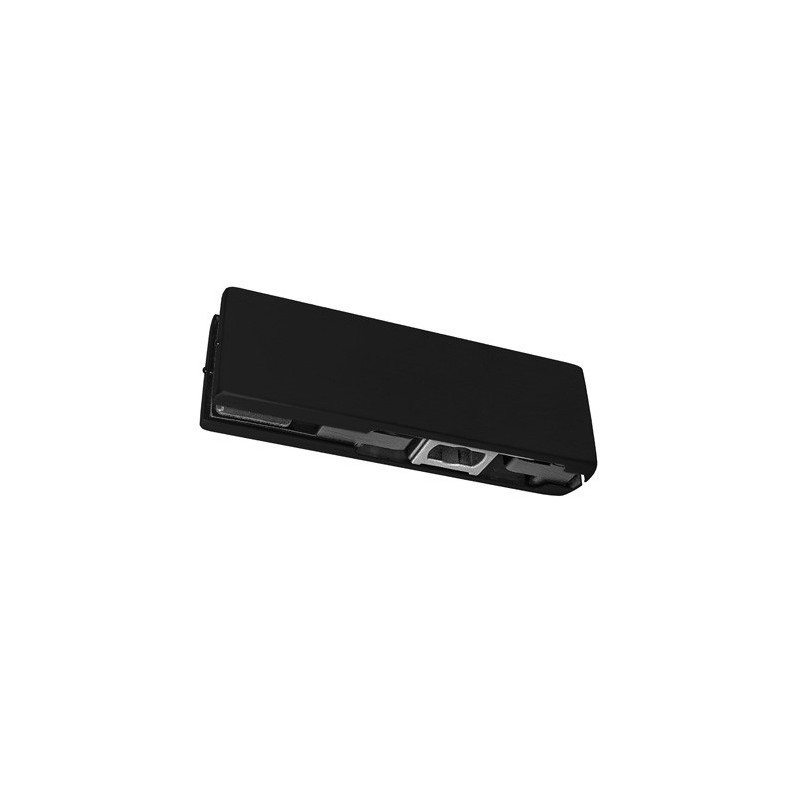

The PD10 bottom hinge is characterised by its durability and aesthetically pleasing design, making it a perfect match for modern interiors.

Specifications:

  • Material: Made from stainless steel.
  • Finish: Available in gloss (PSS), satin (SSS), silver (NA) and black (NABL).

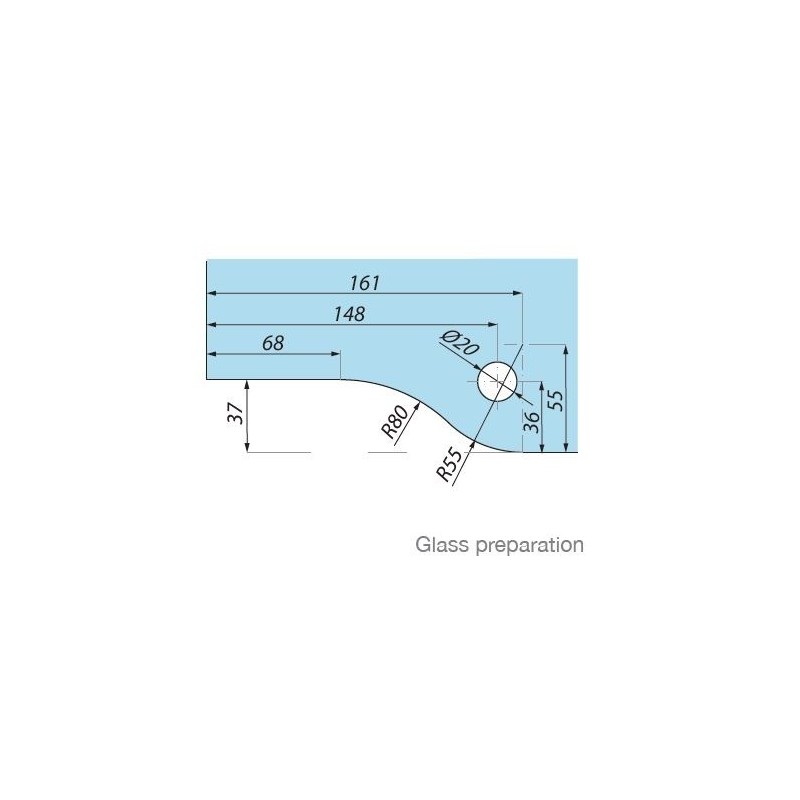

  • Glass thickness: Compatible with 8mm,10mm, 12mm glass thickness.
  • Maximum door weight per pair: 90 kg (note: weight quoted is for a pair of hinges).
  • Maximum door width: 1000 mm.
  • Recommended screw tightening force: M6 - 15 Nm, M8 - 20 Nm.
  • For doors with higher frequency of use, e.g. in public areas where the width exceeds 1000 mm, we recommend the use of DRMN80 or DRMN100 door rails.

Application:

Ideal for mounting glass walls and doors in shops, offices or homes.

Advantages:

  • High quality materials: Made of durable brass.
  • Versatility: Suitable for different types of glass.
  • Aesthetic appearance: Available in gloss or satin to match the style of the interior.





CDA
PD10NABL
2 Items

Data sheet

Glass thickness
8 mm
10 mm
12 mm
Surface finish
Black
Material
Aluminium
Maximum glass width
1000 mm
Recommended screw tightening force
M6 - 15 Nm
M8 - 20 Nm
Max door weight
90 kg
