    PD24-OSRH SSS - Top pivot, offset (right) for PD20-OSRH hinge
    PD24-OSRH SSS - Top pivot, offset (right) for PD20-OSRH hinge
  • Satin

PD24-OSRH SSS - Top pivot, offset (right) for PD20-OSRH hinge

zł124.93

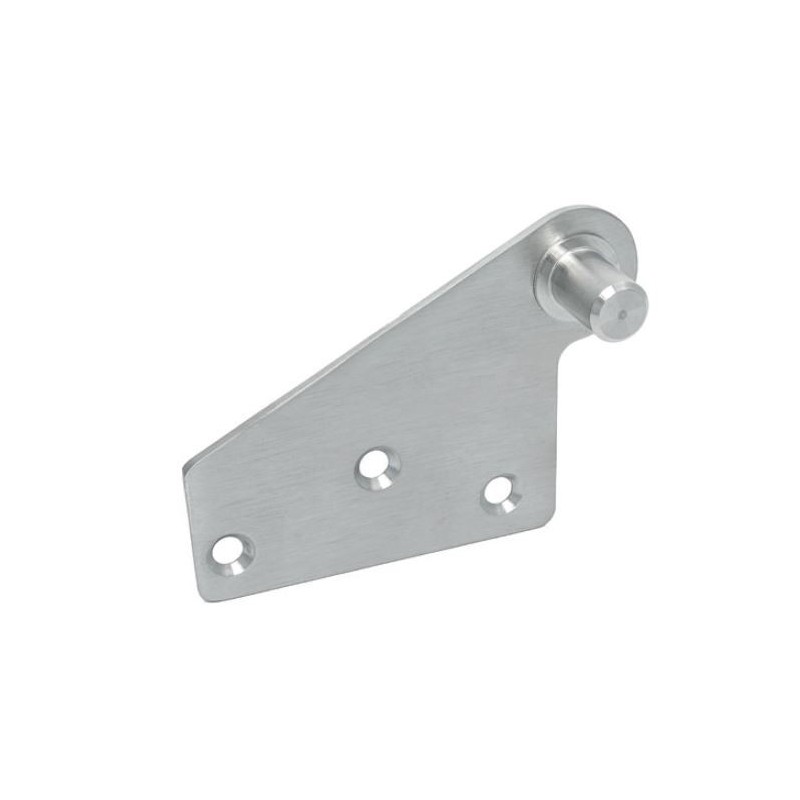

The offset axle plate with pin is a mounting element specifically designed for use with the PD20OSRH hinge. Manufactured from stainless steel, the plate provides exceptional durability and structural stability.

Quantity

  Security policy

Order security

  Delivery policy

Safely delivery

  Return policy

14 days to return the goods

Guarantee safe & secure checkout

Thanks to the offset axis, the plate allows the hinge to be precisely adjusted to fit a variety of mounting arrangements, increasing flexibility and versatility.

Specification:

  • Material: Made from stainless steel.
  • Finish: Available in satin (SSS).
  • This product is recommended for PD20 hinges.
CDA
PD24OSRHSSS

Data sheet

Glass thickness
8 mm
10 mm
12 mm
Surface finish
Satin
Material
Stainless steel
Maximum glass width
1000 mm
Recommended screw tightening force
M6 - 15 Nm
M8 - 20 Nm
Max door weight
90 kg
