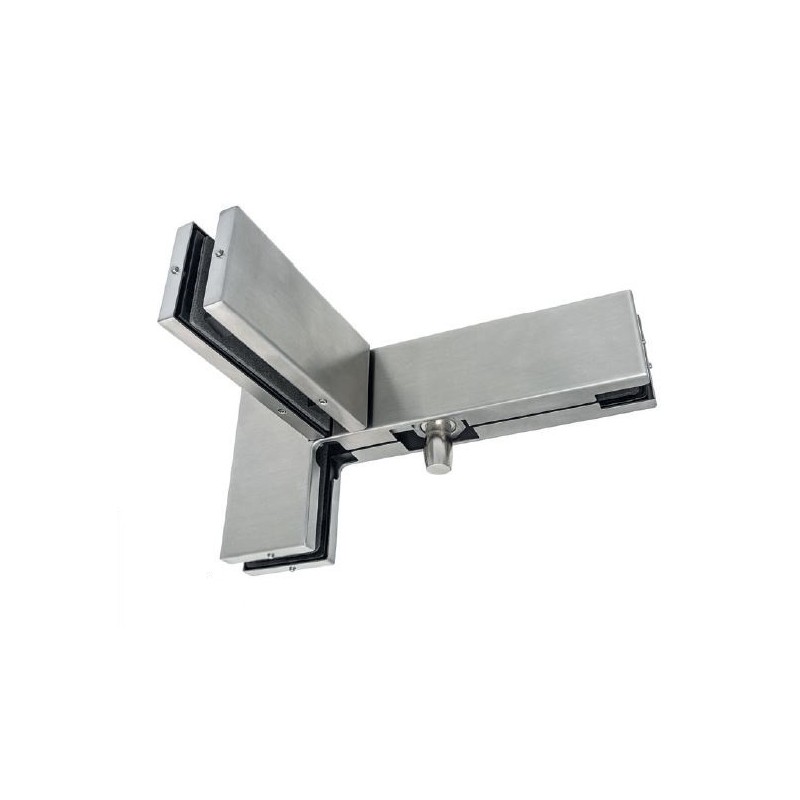

    PD41LH SSS - Overpanel & side panel patch with fin link patch (lleft handed) for PD20 hinge
    PD41LH SSS - Overpanel & side panel patch with fin link patch (lleft handed) for PD20 hinge
    PD41LH SSS - Overpanel & side panel patch with fin link patch (lleft handed) for PD20 hinge
  • Satin

PD41LH SSS - Overpanel & side panel patch with fin link patch (lleft handed) for PD20 hinge

zł411.65

This connection of the rooflight to the side panel and the reinforcing rib ensures not only stability, but also exceptional strength of the entire structure.

Quantity

  Security policy

Order security

  Delivery policy

Safely delivery

  Return policy

14 days to return the goods

Guarantee safe & secure checkout

This connection of the rooflight to the side panel and the reinforcing rib ensures not only stability, but also exceptional strength of the entire structure.

Specification:

  • Material: made of stainless steel.
  • Finish: Available in satin (SSS).
  • Glass thickness: Compatible with 8mm, 10mm, 12mm thick glass.
  • Recommended screw tightening force: M6 - 15 Nm, M8 - 20 Nm.

Application:

Ideal for mounting glass walls and frameless structures.

Advantages:

  • High quality materials: Made of stainless steel.
  • Versatility: Fits various types of glass.
CDA
PD41LHSSS

Data sheet

Glass thickness
8 mm
10 mm
12 mm
Surface finish
Satin
Material
Stainless steel
Maximum glass width
1000 mm
Recommended screw tightening force
M6 - 15 Nm
M8 - 20 Nm
Max door weight
90 kg
