    PD40 SSS - Overpanel & side panel patch for PD20 hinge
    PD40 SSS - Overpanel & side panel patch for PD20 hinge
    PD40 SSS - Overpanel & side panel patch for PD20 hinge
  • Satin

PD40 SSS - Overpanel & side panel patch for PD20 hinge

zł129.02

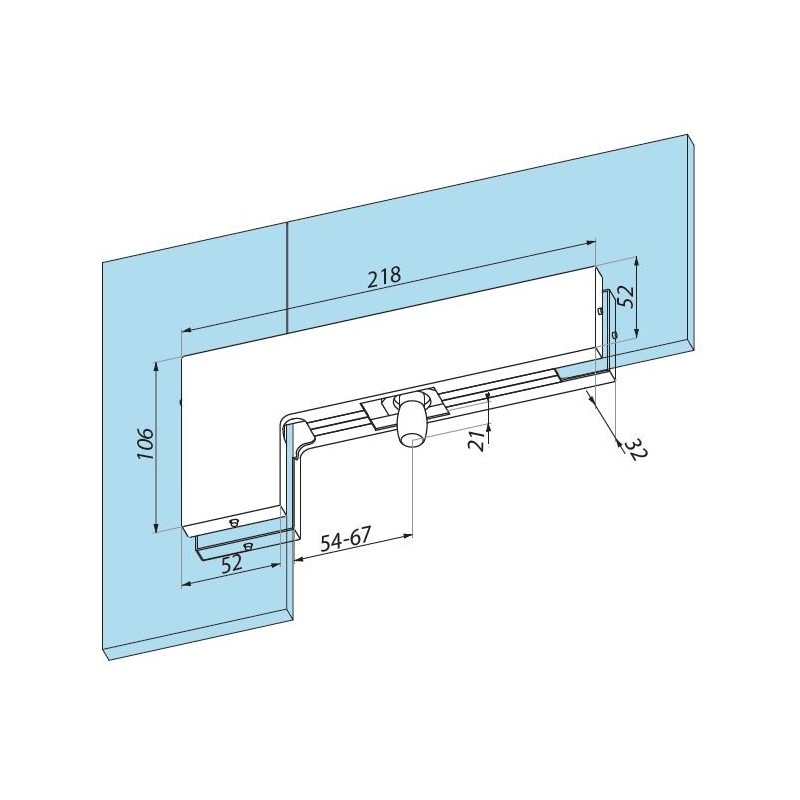

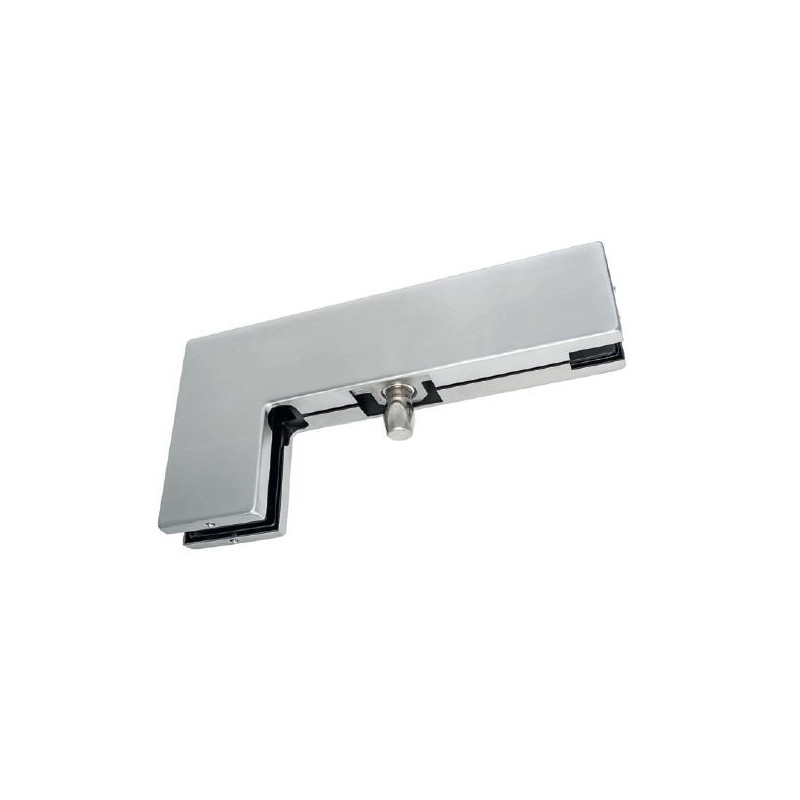

The PD40 top-side rooflight connector is an indispensable mounting component for the attachment of glass walls. Specifically designed to work with the PD20 hinge, it ensures stability and durability of the structure. Fitted with a pin and a dowel, it guarantees easy and secure installation.

Quantity

  Security policy

Order security

  Delivery policy

Safely delivery

  Return policy

14 days to return the goods

Guarantee safe & secure checkout

Made from high quality materials, it is resistant to damage and provides an aesthetically pleasing finish. Ideal for modern interiors where both functionality and elegant design are important.

Specifications:

  • Material: Made of stainless steel or aluminium.
  • Finish: Available in gloss (PSS), satin (SSS), silver (NA) and black (NABL).
  • Glass thickness: Compatible with 8mm,10mm, 12mm glass thickness.
  • Recommended screw tightening force: M6 - 15 Nm, M8 - 20 Nm.

Application:

Ideal for mounting glass walls and doors in shops, offices or homes.

Advantages:

  • High quality materials: Made of stainless steel or aluminium.
  • Versatility: Suitable for different types of glass.
  • Aesthetic appearance: Available in gloss, satin, silver anode or black anode to match the style of the interior.
CDA
PD40SSS
5 Items

Data sheet

Glass thickness
8 mm
10 mm
12 mm
Surface finish
Satin
Material
Stainless steel
Maximum glass width
1000 mm
Recommended screw tightening force
M6 - 15 Nm
M8 - 20 Nm
Max door weight
90 kg
