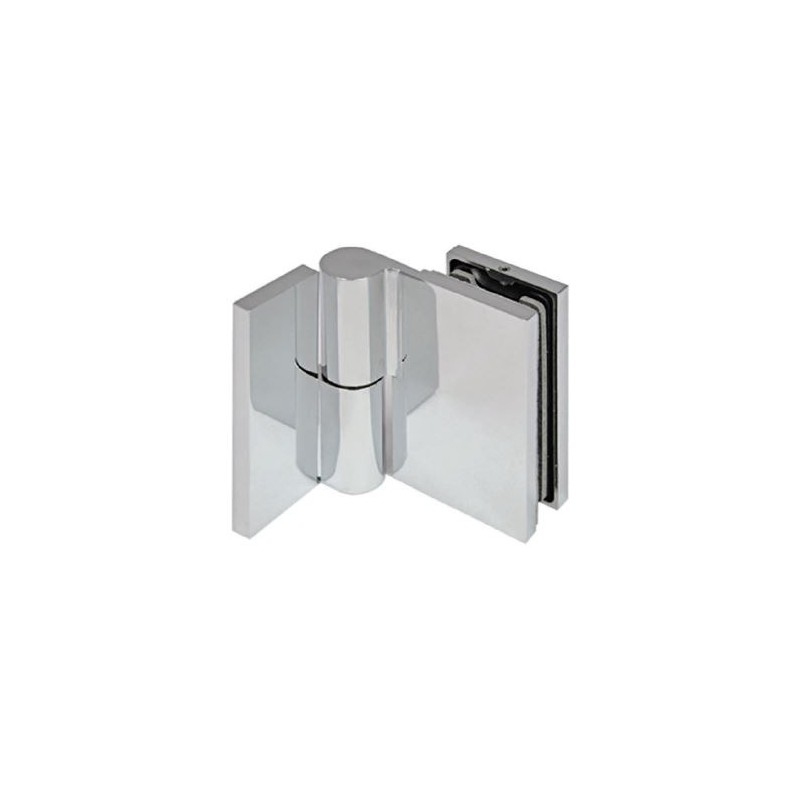

    TGHS90-OSLH PC - Standard hinge left wall to glass 90° offset fixing plate
    TGHS90-OSLH PC - Standard hinge left wall to glass 90° offset fixing plate
    TGHS90-OSLH PC - Standard hinge left wall to glass 90° offset fixing plate
  • Gloss

TGHS90-OSLH PC - Standard hinge left wall to glass 90° offset fixing plate

zł186.37

The glass fitting designated TGHS90-OSLH is a 90° left-hand standard hinge designed for shower enclosures and has a side mount. Its universal design will make it ideal for any bathroom.





Quantity

  Security policy

Order security

  Delivery policy

Safely delivery

  Return policy

14 days to return the goods

Guarantee safe & secure checkout

The hinge is the ideal solution for mounting a glass panel and allows it to be fixed to the wall at a 90-degree angle. It gives the interior a modern look and a unique character, giving both residential rooms and office spaces an elegant touch.

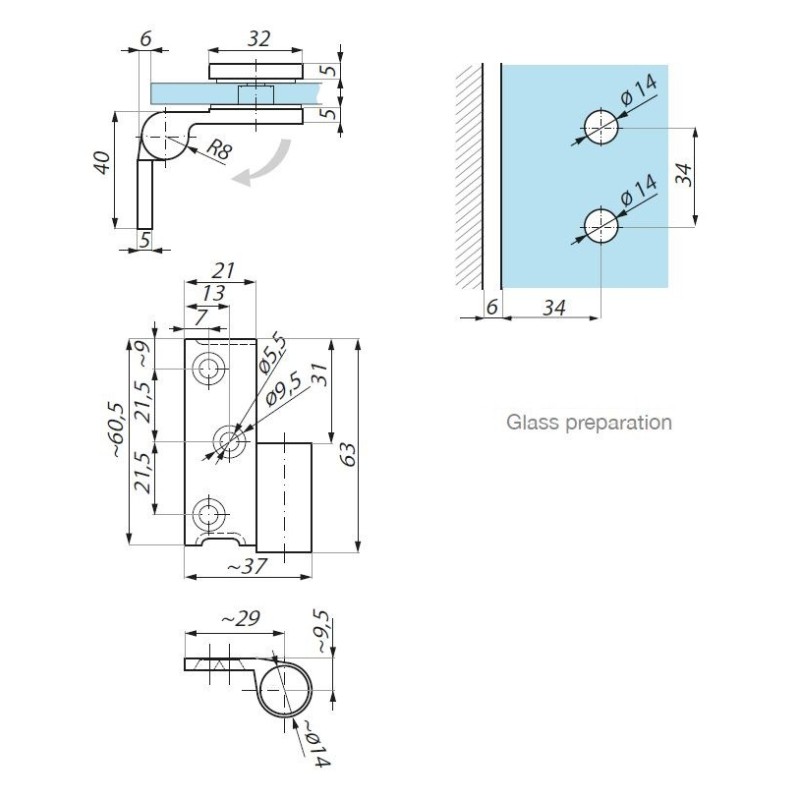

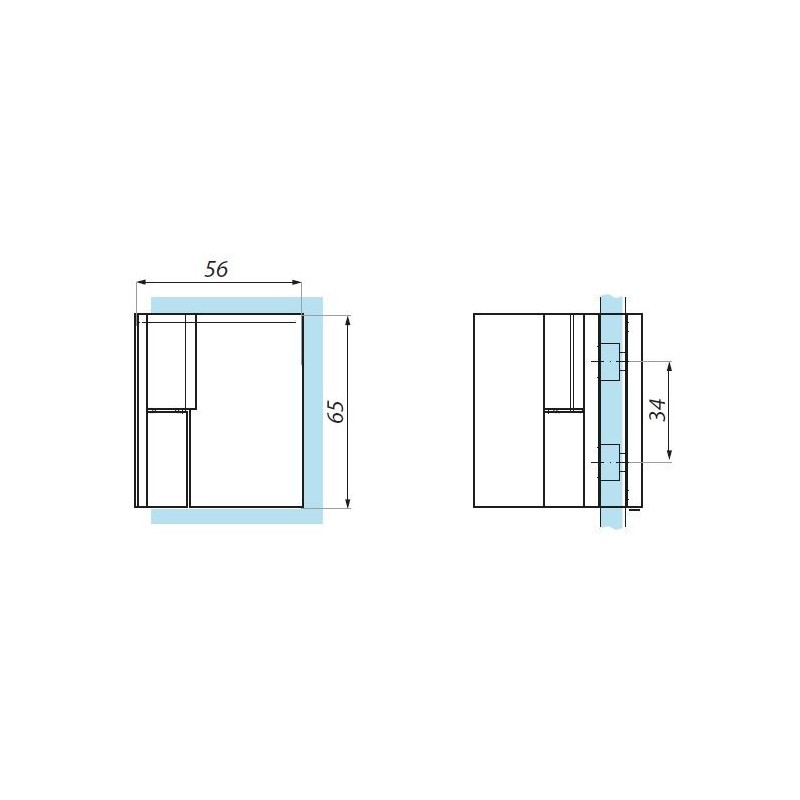

Specifications:

  • Material: Made of brass.
  • Finish: Available in gloss (PC) or satin (SC).
  • Glass thickness: Compatible with 6mm or 8mm thick glass.
  • Maximum door weight per pair: 40 kg (note: the stated weight is for a pair of hinges).
  • Recommended screw tightening force: 10 Nm.

Application:

The product is recommended for use in shower cabins.

Ideal for installing glass doors in bathrooms, bath rooms or spas.

Advantages:

  • High quality materials: Made of durable brass.
  • Versatility: Fits a variety of glass and shower enclosure designs.
  • Aesthetic appearance: Available in gloss or satin to match your interior style.


















CDA
TGHS90OSLHPC

Data sheet

Glass thickness
6 mm
8 mm
Surface finish
Gloss
Material
Brass
Max glass weight (per pair)
40 kg
