    TGHU90-OSLH SC - Lifted hinge left wall to glass 90° offset fixing plate
    TGHU90-OSLH SC - Lifted hinge left wall to glass 90° offset fixing plate
    TGHU90-OSLH SC - Lifted hinge left wall to glass 90° offset fixing plate
  • Satin

TGHU90-OSLH SC - Lifted hinge left wall to glass 90° offset fixing plate

zł182.27

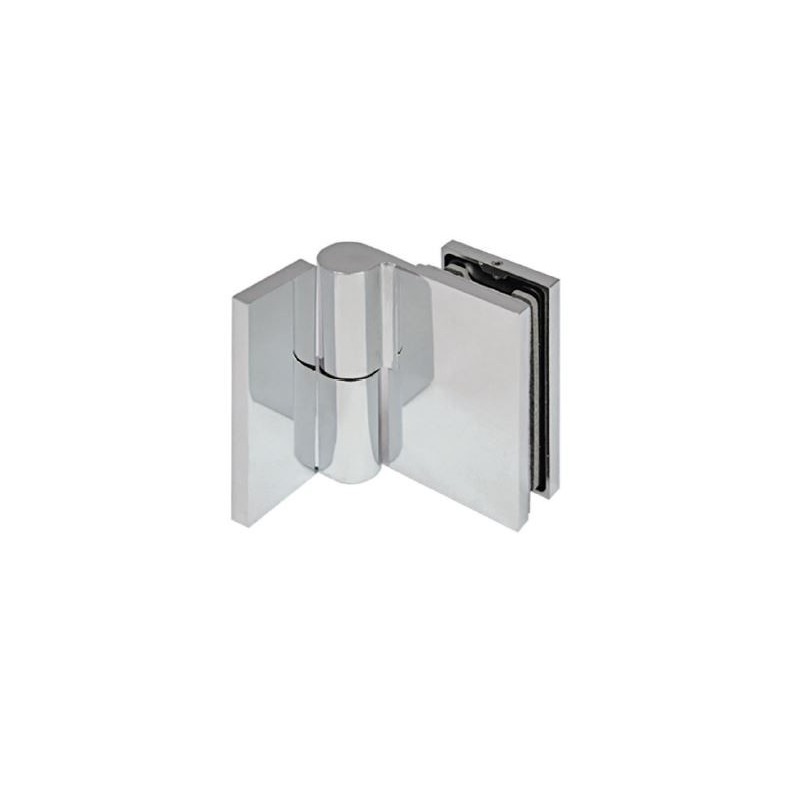

 The TGHU90-OSLH fitting is a 90-degree raised left-hand hinge, designed for wall and glass mounting, and has a side mount.













Quantity

  Security policy

Order security

  Delivery policy

Safely delivery

  Return policy

14 days to return the goods

Guarantee safe & secure checkout

This hinge allows you to open or install the panel at a 90-degree angle. It is ideal for shower enclosures and other glass structures. You can install it on the left side. Remember that chrome-plated brass is a finish that adds elegance and durability.

The TGHU90-OSLH hinge is a component designed for shower enclosures, allowing the installation of glass doors. Here is some key information about this product:

Specifications:

  • Material: Made of brass.
  • Finish: Available in gloss (PC), satin (SC), black (BL) or gold (PBC and G24K).
  • Glass thickness: Compatible with 6 mm or 8 mm thick glass.
  • Maximum door weight per pair: 40 kg (note: the stated weight is for a pair of hinges).
  • Recommended screw tightening force: 10 Nm.

Application:

The product is recommended for use in shower cabins.

Ideal for installing glass doors in bathrooms, bath rooms or spas.

Advantages:

  • High quality materials: Made of durable brass.
  • Versatility: Fits a variety of glass and shower enclosure designs.
  • Aesthetic appearance: Available in gloss, satin or black to match your interior style.





















CDA
TGHU90OSLHSC
2 Items

Data sheet

Glass thickness
6 mm
8 mm
Surface finish
Satin
Material
Brass
Max glass weight (per pair)
40 kg
