U’ mounting profile for fixed panels, recommended for use in shower enclosures.

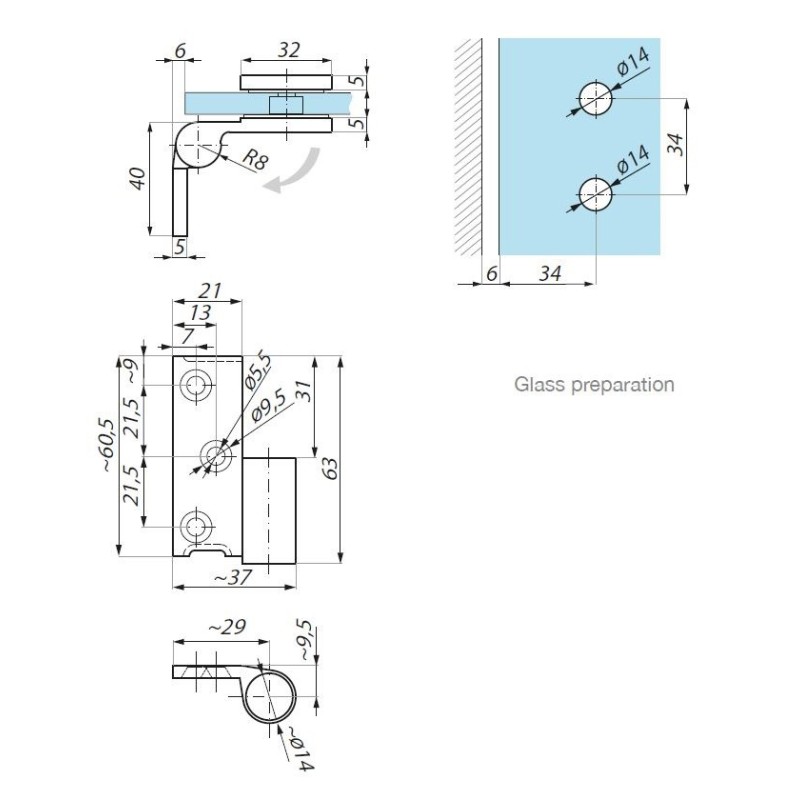

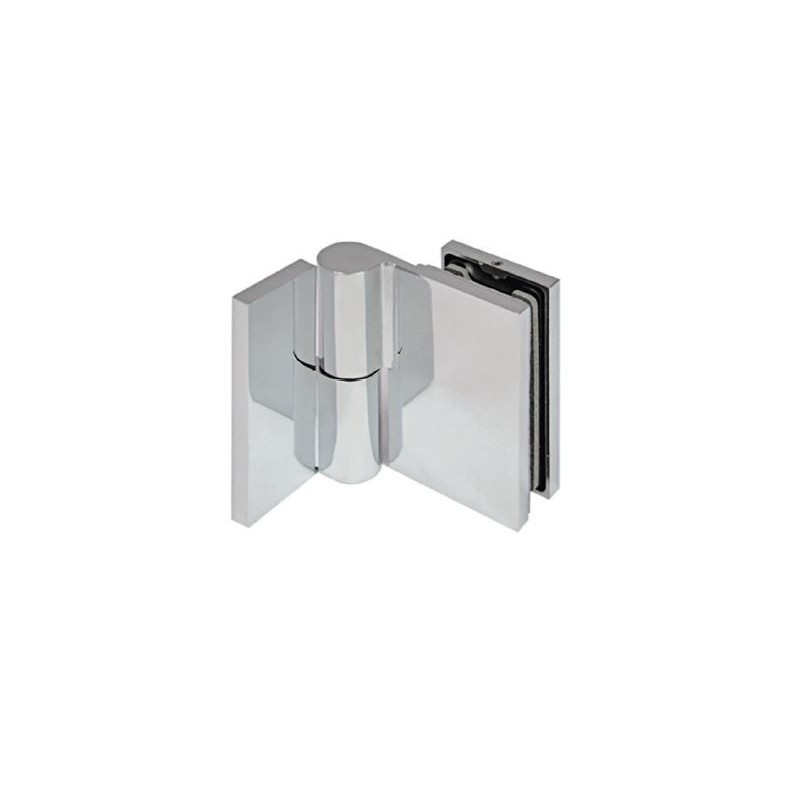

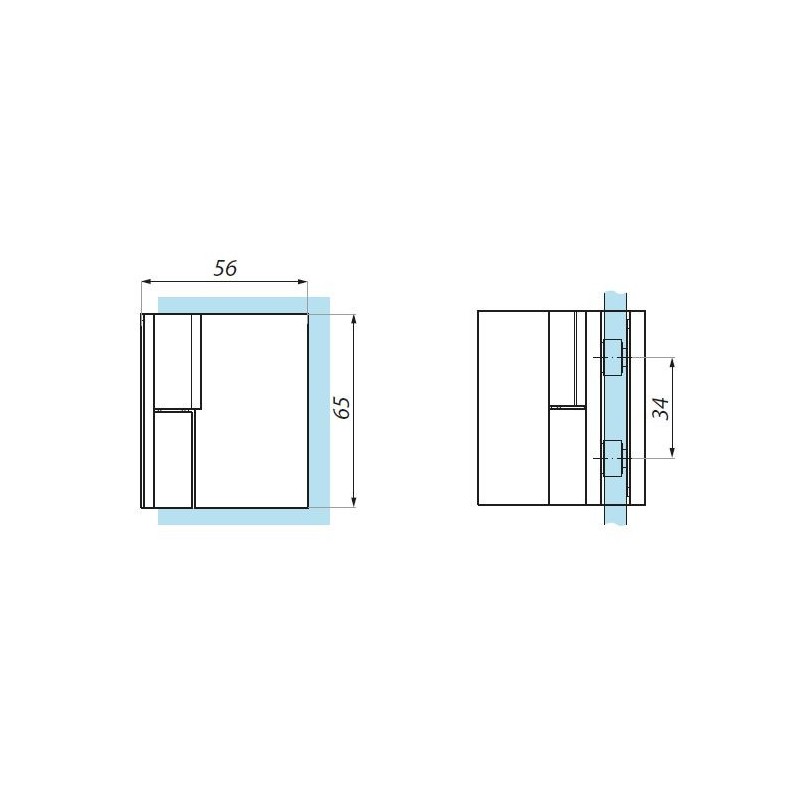

TGHU90-OSLH PC - Lifted hinge left wall to glass 90° offset fixing plate
zł173.06
The TGHU90-OSLH fitting is a 90-degree raised left-hand hinge, designed for wall and glass mounting, and has a side mount.
Security policy
Order security
Delivery policy
Safely delivery
Return policy
14 days to return the goods
Guarantee safe & secure checkout
This hinge allows you to open or install the panel at a 90-degree angle. It is ideal for shower enclosures and other glass structures. You can install it on the left side. Remember that chrome-plated brass is a finish that adds elegance and durability.
The TGHU90-OSLH hinge is a component designed for shower enclosures, allowing the installation of glass doors. Here is some key information about this product:
Specifications:
- Material: Made of brass.
- Finish: Available in gloss (PC), satin (SC), black (BL) or gold (PBC and G24K).
- Glass thickness: Compatible with 6 mm or 8 mm thick glass.
- Maximum door weight per pair: 40 kg (note: the stated weight is for a pair of hinges).
- Recommended screw tightening force: 10 Nm.
Application:
The product is recommended for use in shower cabins.
Ideal for installing glass doors in bathrooms, bath rooms or spas.
Advantages:
- High quality materials: Made of durable brass.
- Versatility: Fits a variety of glass and shower enclosure designs.
- Aesthetic appearance: Available in gloss, satin or black to match your interior style.
TGHU90OSLHPC
8 Items
Data sheet
- Glass thickness
- 6 mm
8 mm - Surface finish
- Gloss
- Material
- Brass
- Max glass weight (per pair)
- 40 kg
