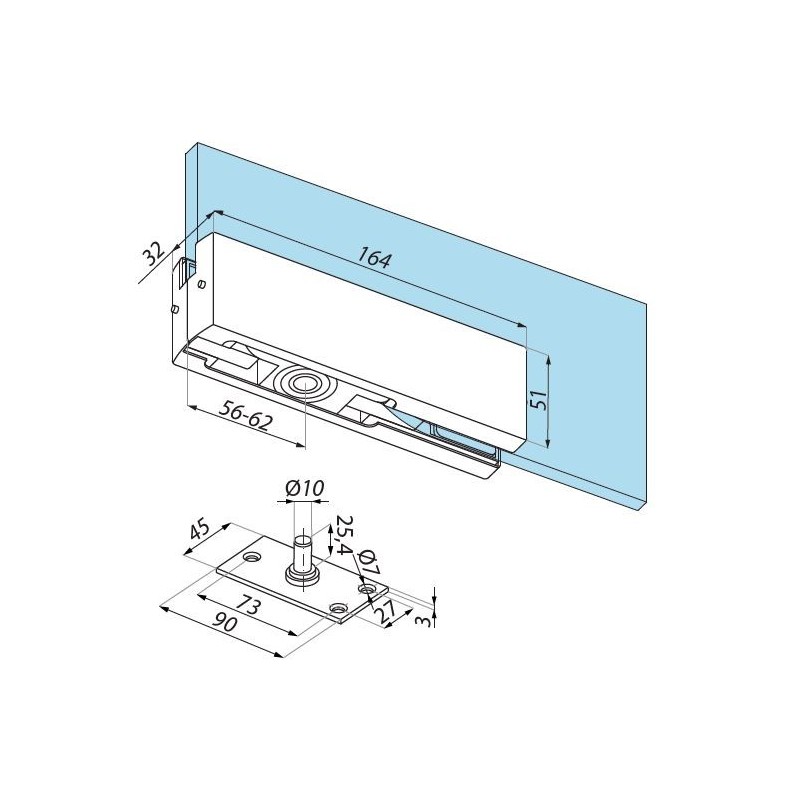

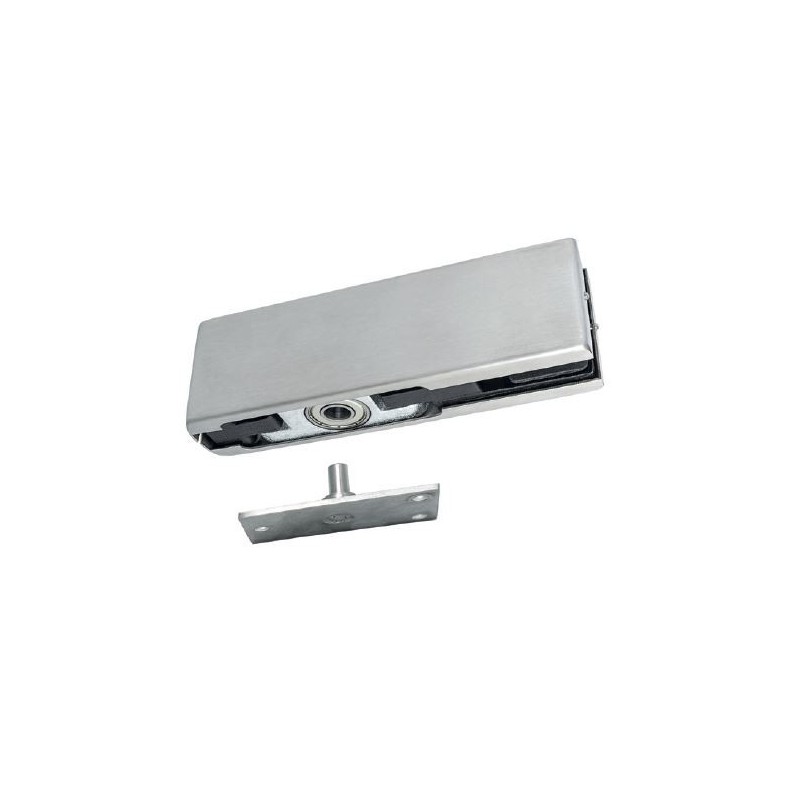

    PD12SSS - Bottom hinge with ball bearing and floor pivot
    PD12SSS - Bottom hinge with ball bearing and floor pivot
    PD12SSS - Bottom hinge with ball bearing and floor pivot
  • Satin

PD12SSS - Bottom hinge with ball bearing and floor pivot

zł160.76

The PD12 glass fitting is a top-quality mounting element, dedicated mainly for use in glass door and partition wall constructions, ensuring not only robustness but also the aesthetic appearance of the entire construction.

Quantity

  Security policy

Order security

  Delivery policy

Safely delivery

  Return policy

14 days to return the goods

Guarantee safe & secure checkout

The PD12 bottom hinge is characterised by its durability and aesthetically pleasing design, making it a perfect match for modern interiors.

Specifications:

  • Material: Made from stainless steel.
  • Finish: Available in satin (SSS) and silver (NA).
  • Glass thickness: Compatible with 8mm,10mm, 12mm glass thickness.
  • Maximum door weight per pair: 90 kg (note: weight quoted is for a pair of hinges).
  • Maximum door width: 1000 mm.
  • Recommended screw tightening force: M6 - 15 Nm, M8 - 20 Nm.
  • For doors with higher frequency of use, e.g. in public areas where the width exceeds 1000 mm, we recommend the use of DRMN80 or DRMN100 door rails.

Application:

Ideal for mounting glass walls and doors in shops, offices or homes.

Advantages:

  • High quality materials: Made of durable brass.
  • Versatility: Suitable for different types of glass.
CDA
PD12SSS
2 Items

Data sheet

Glass thickness
8 mm
10 mm
12 mm
Surface finish
Satin
Material
Stainless steel
Maximum glass width
1000 mm
Recommended screw tightening force
M6 - 15 Nm
M8 - 20 Nm
Max door weight
90 kg
