    TTU90GGRH SC - Lifted hinge left glass to glass 90°
    TTU90GGRH SC - Lifted hinge left glass to glass 90°
    TTU90GGRH SC - Lifted hinge left glass to glass 90°
  • Satin

TTU90GGRH SC - Lifted hinge left glass to glass 90°

zł257.02

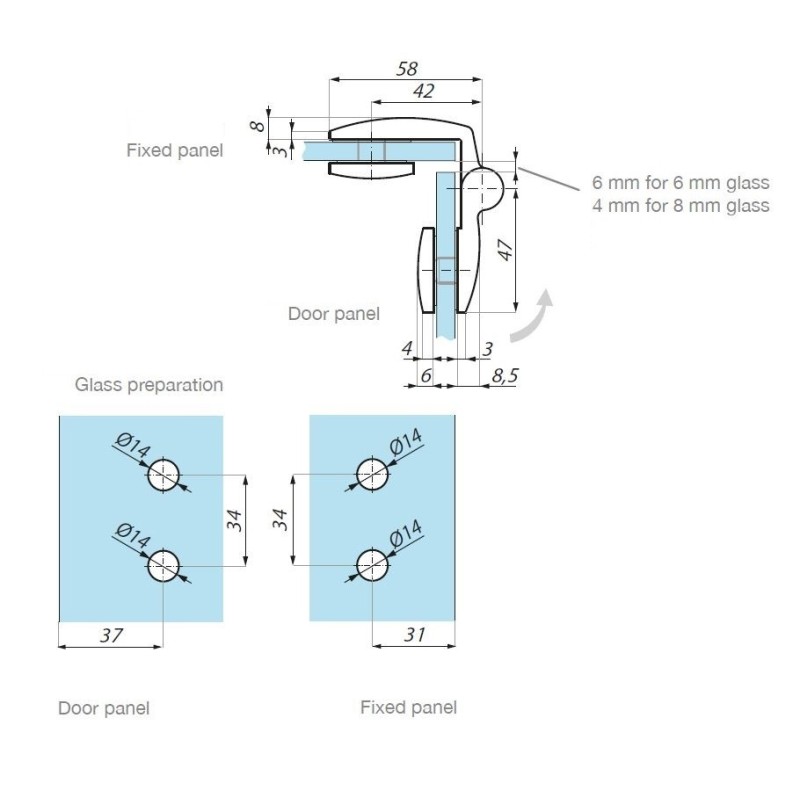

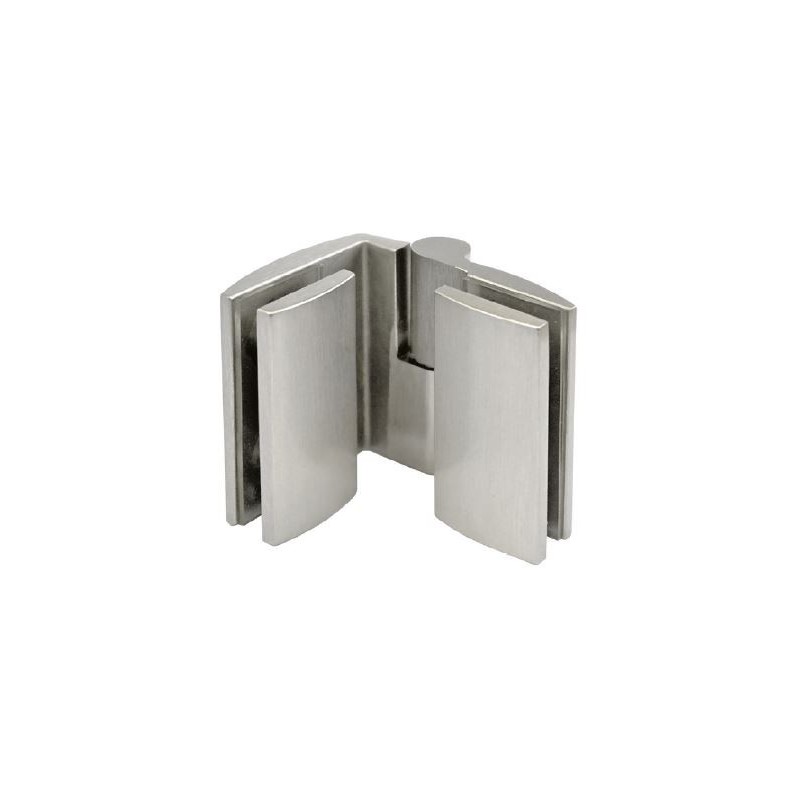

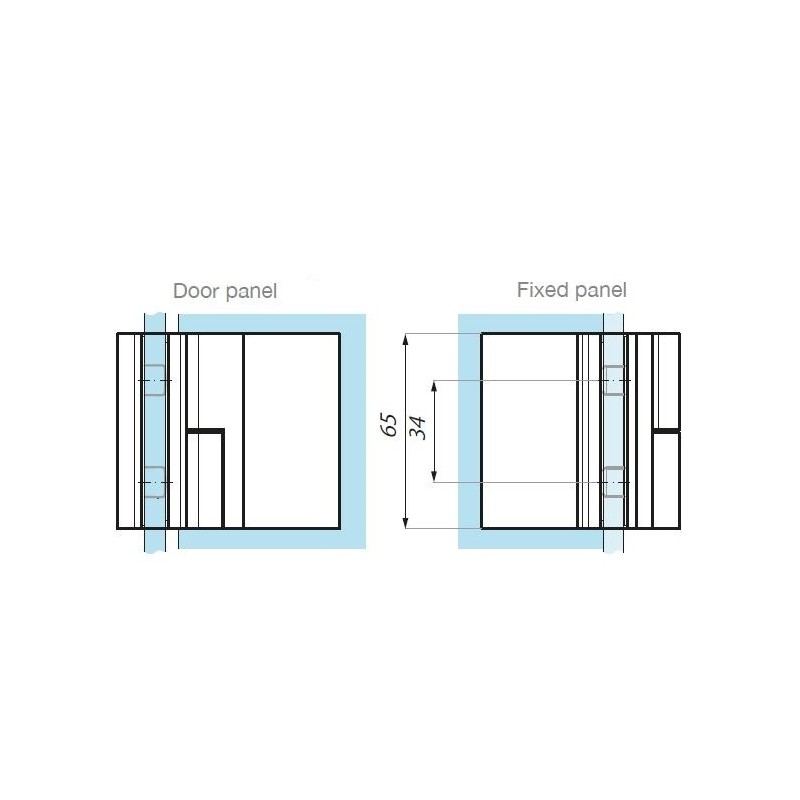

The TTU90GGRH fitting is a 90-degree raised right-hand hinge for glass-to-glass installation.

Quantity

  Security policy

Order security

  Delivery policy

Safely delivery

  Return policy

14 days to return the goods

Guarantee safe & secure checkout

This hinge allows you to open or install the panel at a 90-degree angle. It is ideal for shower enclosures and other glass structures. You can install it on the left side. Remember that chrome-plated brass is a finish that adds elegance and durability.

The TTU90GGRH hinge is a component designed for shower enclosures, allowing the installation of glass doors. Here is some key information about this product:

Specifications:

  • Material: Made of brass.
  • Finish: Available in gloss (PC) or satin (SC).
  • Glass thickness: Compatible with 6 mm or 8 mm thick glass.
  • Maximum door weight per pair: 40 kg (note: the stated weight is for a pair of hinges).
  • Recommended screw tightening force: 10 Nm.

Application:

The product is recommended for use in shower cabins.

Ideal for installing glass doors in bathrooms, bath rooms or spas.

Advantages:

  • High quality materials: Made of durable brass.
  • Versatility: Fits a variety of glass and shower enclosure designs.
  • Aesthetic appearance: Available in gloss or satin to match your interior style.
CDA
TTU90GGRHSC

Data sheet

Glass thickness
6 mm
8 mm
Surface finish
Satin
Material
Brass
Max glass weight (per pair)
40 kg
